Roll Hardness Profilers for Paper, Board and Plastic

Tapio RQP Live Roll Quality Profiler will help you detect hidden roll defects before they cause costly problems. Our solution provides deeper insights by analyzing multiple layers of the roll, ensuring consistent quality from edge to edge – you can be sure that every roll meets the highest standards.

Smarter Roll Hardness Testing

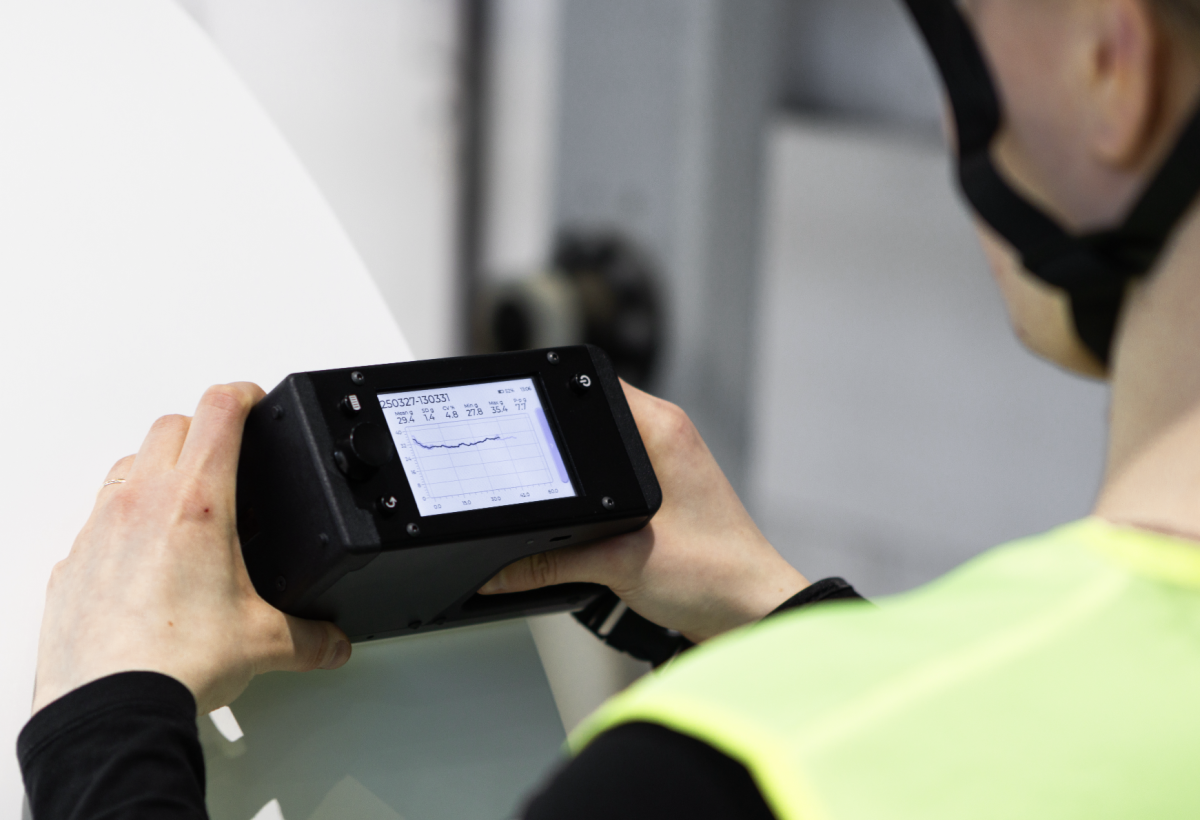

The hardness profile of a roll is a great overall measure of roll quality. Tapio’s handheld device RQP Live can quickly and accurately measure roll hardness profiles, detecting inconsistencies that could impact production quality. With Tapio RQP Live you will:

Quickly obtain a high-resolution hardness profile of distance vs hardness.
Identify loose edges, hardness variations, and tension inconsistencies.
Prevent defects from reaching customers.
Take the equipment into use easily with the interactive measurement interface for guiding the operator

Advantages of Tapio RQP Live

Real-time roll hardness profiling gives your production undeniable efficiency.

No waiting – Get instant visibility into roll hardness with live measurements.
Smarter decisions – Customizable alert limits and intuitive visualizations let you assess roll quality in seconds.
Effortless integration – Wireless connectivity for data transfer and open-source PC software with support for postprocessors to transfer files into other systems
High accuracy – Factory-calibrated for consistent, reliable results.
Alert limits – Pass/fail notifications instantly flag bad rolls.
Easy to use & lightweight – Designed for quick and accurate quality control.
Competitive pricing
Dedicated support – Tapio’s expert maintenance and service keep your operations running smoothly for years.

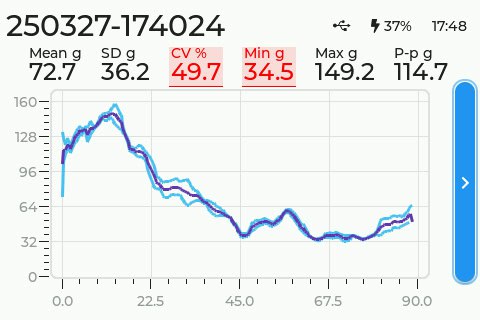

The hardness profile is shown immediately after the measurement in RQP Live. Statistics exceeding set limits are automatically flagged after the measurement.

Suitable Applications for Tapio RQP Live

Paper rolls
Plastic rolls
Customer rolls
Machine rolls
Alert limits – Pass/fail notifications instantly flag bad rolls.
Parent reels
Roll ends

Consumer packaging board grades
Sack, Kraftliner, Fluting
Release paper
S/C crages
LWC grades
Newsprint
Also used as QCS follow-up tool to verify caliper profiles

How does it work?

The measurement of Tapio RQP Live is based on measuring the deceleration of an impact hammer hitting the sample over 30 times per second while simultaneously measuring the location of the profiler with a distance measurement wheel.

The device has a barcode scanner that can to automatically create a roll folder in the device. The current hardness value, speed and location are shown to the user during measurement.

Immediately after measurement, the device displays the hardness profile and statistical KPI values of the measured roll, allowing for a quick and efficient judgment of the roll quality with a convenient alert limits feature.

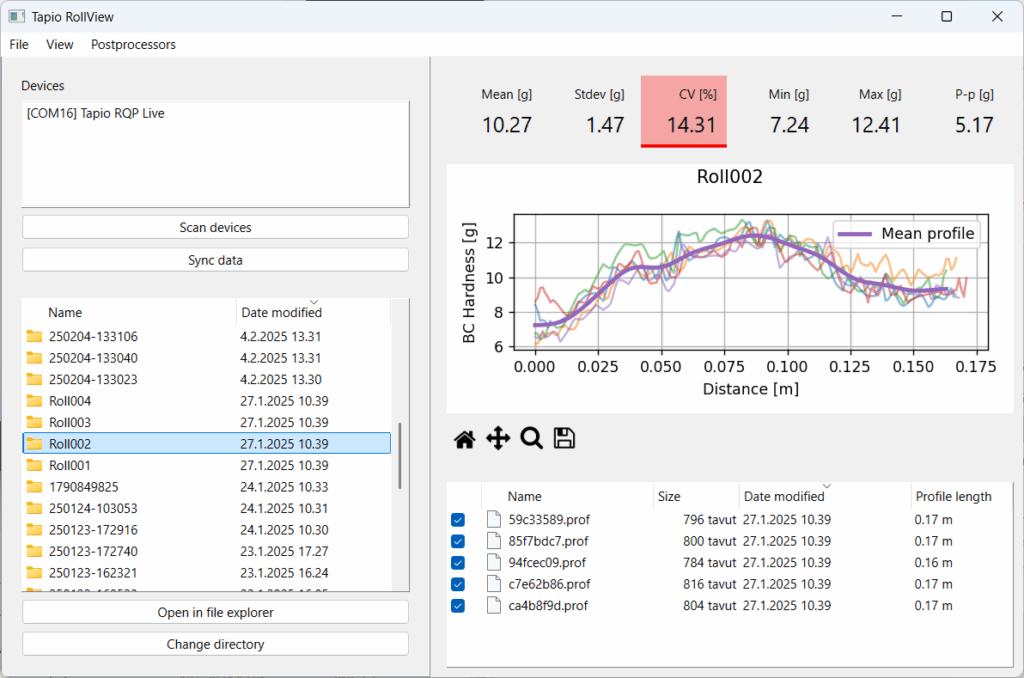

The device is provided with Tapio RollView, an easy-to-use software for further processing of the measured data on a computer system. The complimentary software is available for download and install at https://github.com/Tapio-Measurement-Technologies/tapio-rollview
